Rako Switch Module for Non-Dimmable Loads 800w

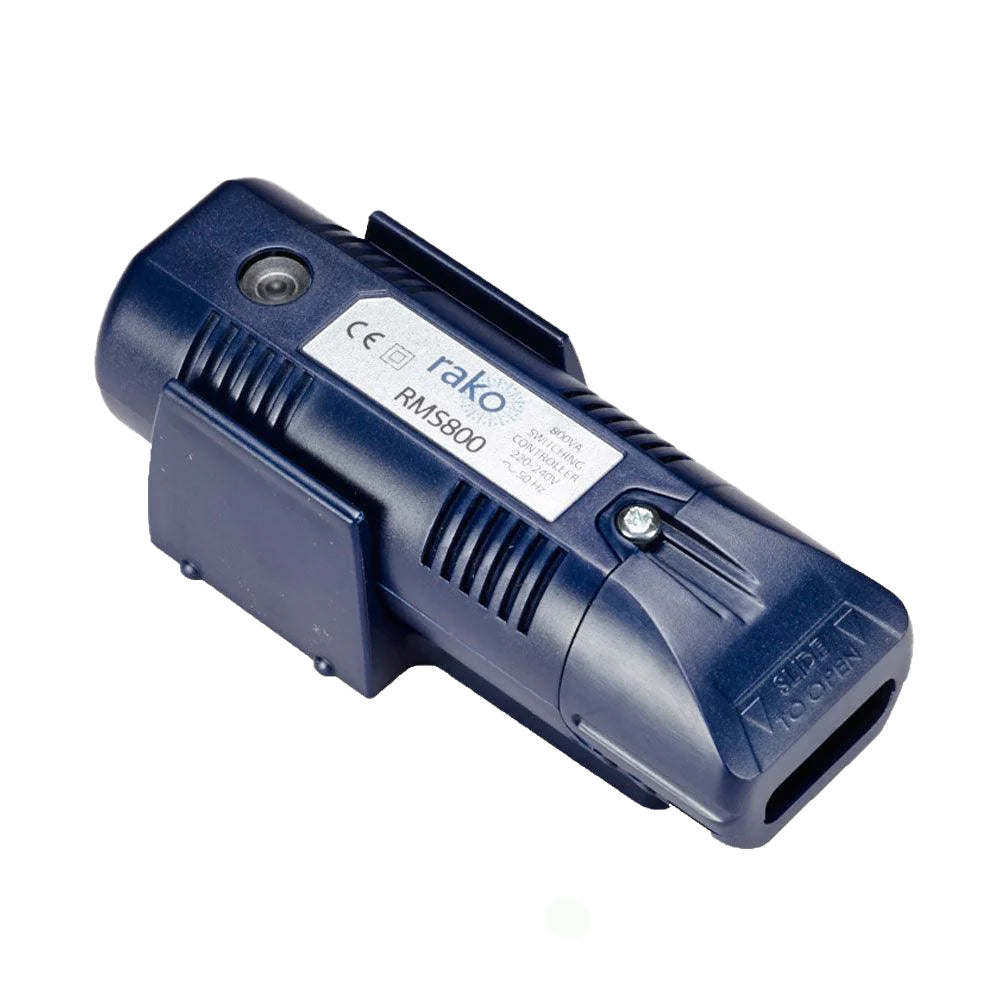

Rako RMS800
Rako Lighting In-Line Switch for Non-Dimmable Loads 800w

Rako RMS800 Product Overview
A compact 800w RF switch module. The unit is connected in-line before the first light fitting, to enable switching of up to 800w of non dimmable loads.

Ideal for extractor fans, LEDs, non dimmable fluorescents, garden water features and other switched
only loads. Controlled from any Rako RAKOM RF device, for example the RCP07W push button RF wall plate.

Designed to fit in a ceiling void or cupboard, the RMS800 switching module can control up to 800 watts of mains non dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.

The robust microprocessor design combines reliable switching with dynamic safety features such as auto-resetting over current and voltage surge protection.

Programmed using either an RCP07 RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus four preset scene levels in non volatile memory.

The RDS800C switch module can be controlled from any Rako transmitter such as RCP wallplates, RAH hand helds, MB1 timeclocks and forms the foundation of any Rako scene-set system.


Dimensions: 160x50x36mm

Input Supply: 230V AC +/-10% 50Hz

Weight 125g: housing UL V0 material

Climate Range
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections: 3 way screw terminals for mains power

Protection
Auto resetting over current protection, Auto thermal shutdown, Voltage surge protection

Load Types
All non Dimmable lighting loads
Extractor Fans
Water pumps

Max Load - 800w

Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)

Terminal Sizes
1.5mm2 - Stranded
2.5mm2 - Solid

standards
EMC - EN 5001-1 :1992
Immunity - EN 50082-1 :1997

Group: Wireless Lighting Control / Radio Frequency Lighting Control / Retrofit Lighting Controls
Sub Group: Multi Scene Lighting Controls
Category: Rako Lighting
Description: Rako Lighting Switch Module for non dimmable loads / Rako in-line switch
Code: Rako RDS800C / RDS800C
