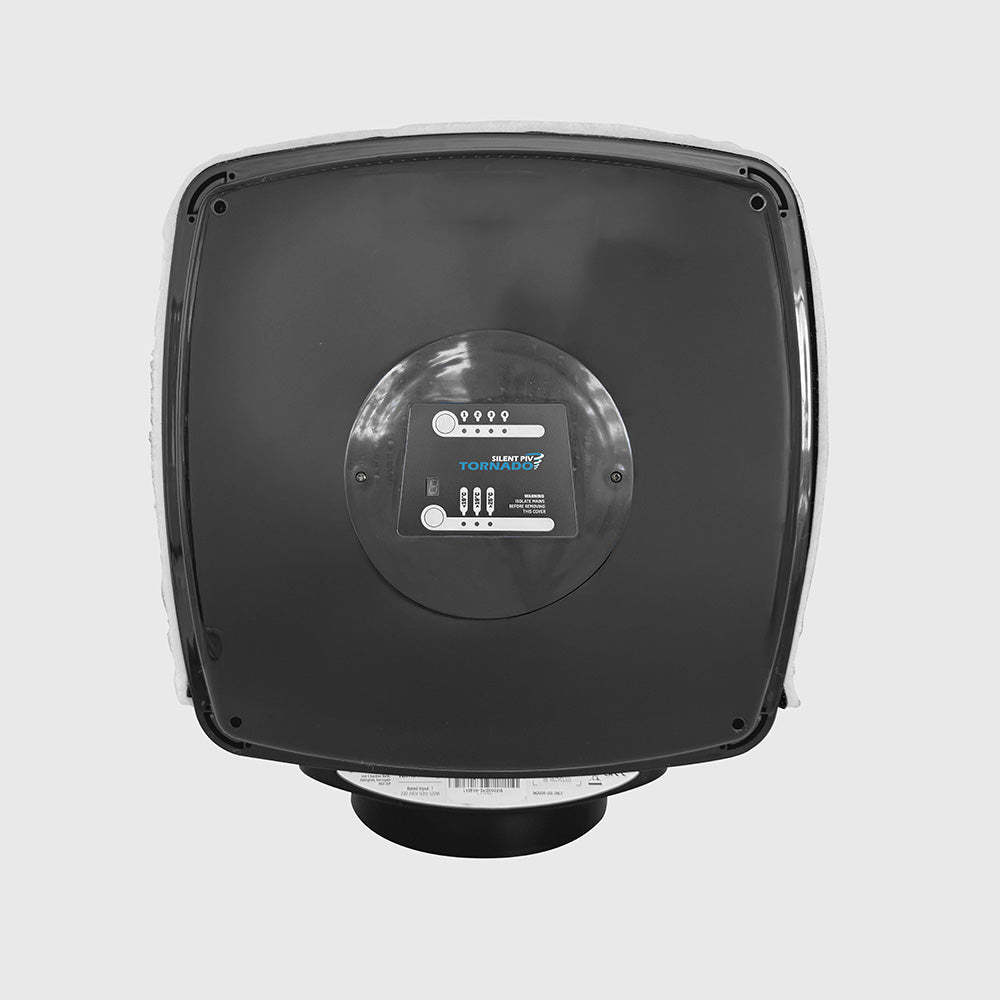

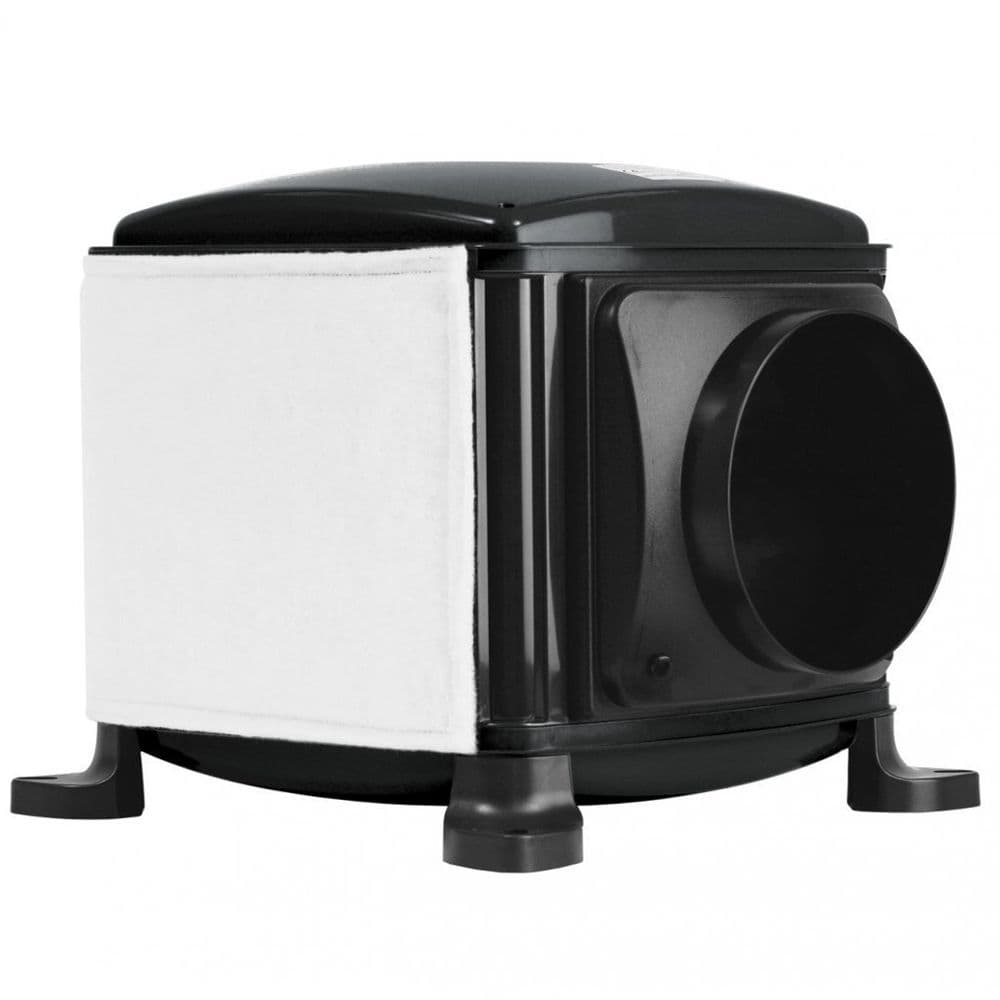

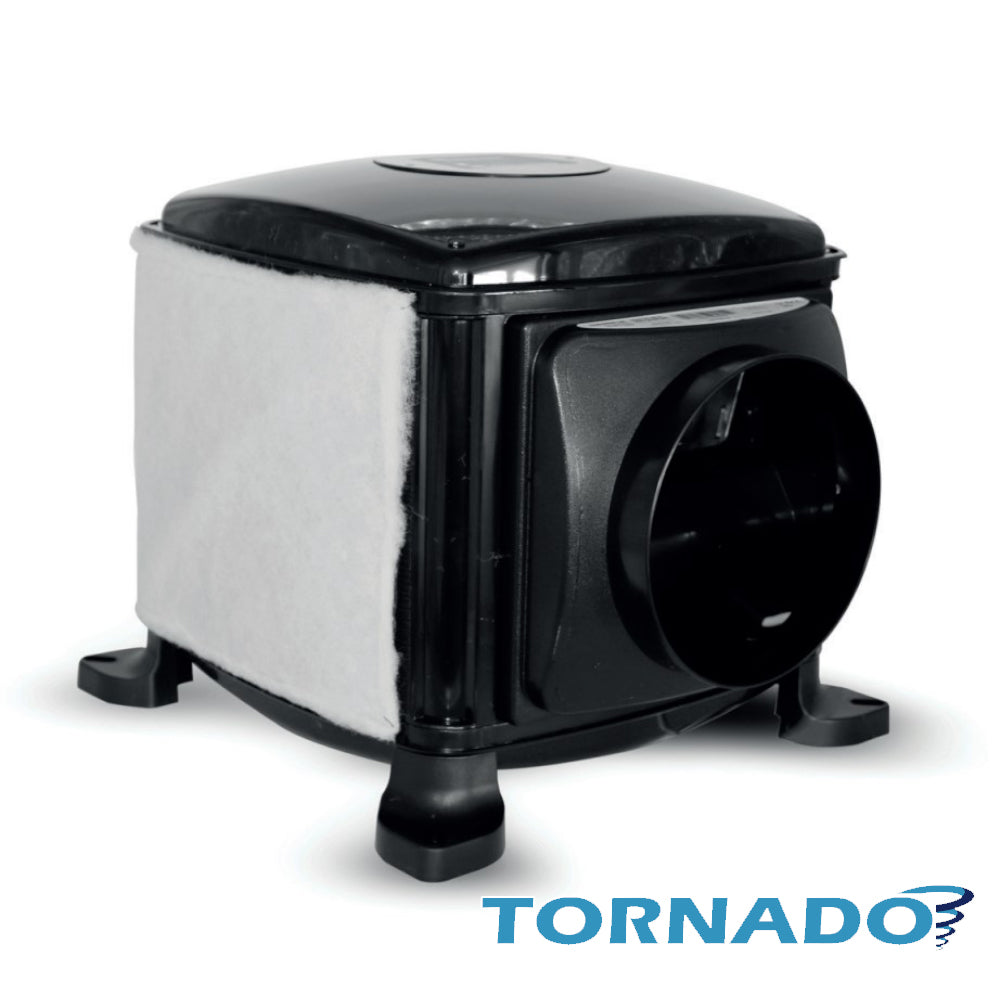

Tornado STPIVLH Positive Input Ventilation Heated PIV System

Overview

The STPIVLH Positive Input Ventilation unit from Tornado creates fresh and healthy living environments by supplying filtered air into a property from your loft space at a continuous rate through a ceiling mounted diffuser. The units have been developed to improve indoor air quality and resolve condensation and mould problems.

When the loft air temperature drops below 10°C, the internal heating element turns on to temper the incoming air. Once the loft air rises above 10°C, the heating element turns off. You can install the optional heater switch (HEATER ENABLE SWITCH), which allows you to disable/enable the automatic heater function.

In conditions between 19°C - 25°C the units will increase air flow rate by 10%. In hot conditions above 25°C the units will temporarily switch off to avoid bringing hot air into the property from the loft space.

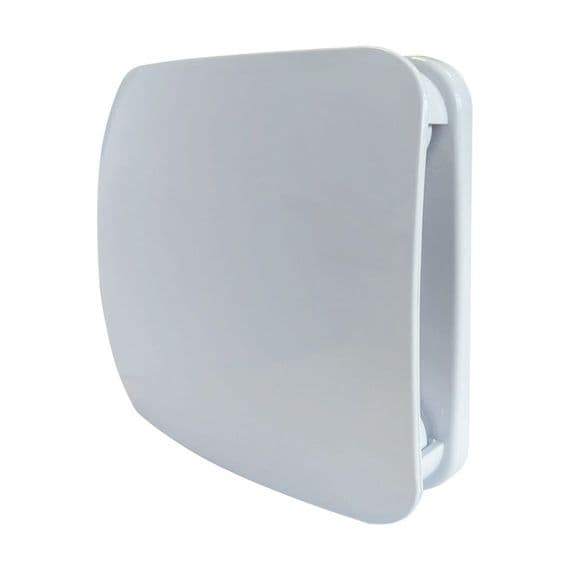

The PIV Unit uses a single 200mm diffuser to provide air into a hallway or landing area which is supplied with the unit, along with all items required for installation.

Key Features

• Designed to eliminate condensation & prevent mould
• Supplied with a full installation kit including mounting screws, ducting, anti-vibration pads, and 200mm diffuser grille
• Replaceable filters are available in a range of various grades
• Four Airflow Rates:
  – 1. 76 m³/hr (21 litres/sec)
  – 2. 105 m³/hr (29 litres/sec)
  – 3. 137 m³/hr (38 litres/sec)
  – 4. 176 m³/hr (49 litres/sec)
• Built-in automatic heater with optional manual control switch (not supplied)
• Summer Bypass
• Quiet Operation
• Low Running Costs
• Compact design to fit through most UK loft hatches
• Suitable for homes up to 5 bedrooms
• 3-Year warranty
• Dimensions - 400 × 450 × 380 mm
